Dometic EBE

Compact Evaporator Series
Sold in our dealer networkArt nr: 9108690473
Your Configurations
Cooling Capacity, [BTU]

36000

Input voltage (AC), [V]

230

Input frequency, [Hz]

50/60

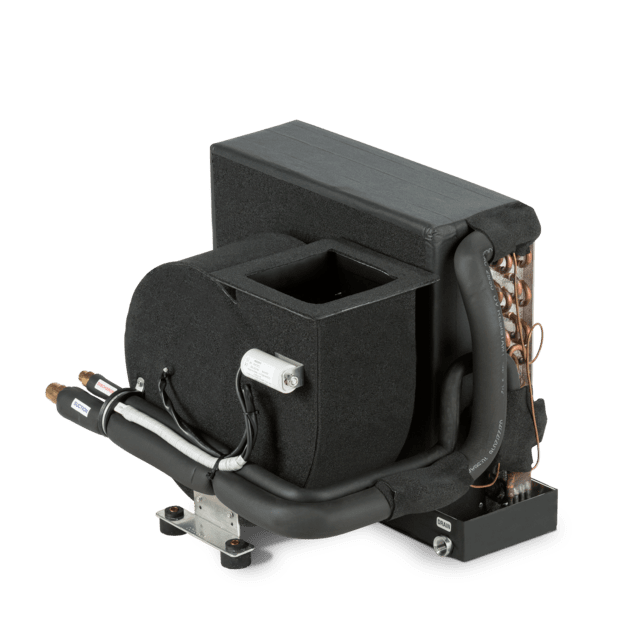

Item Description

EBE36-230V 10"MR

Compact ductable cooling or heating units save space

Rotating blower allows you to direct the airflow as needed

Vibration-isolation mounting reduces noise and vibration

Insulated condensate pan with anti-slosh, anti-fungal foam lining

High-efficiency evaporator coil

Available with electric heat (Dometic EBHE models)

Designed to be used with Emerald series R410A condensers

SKU number

9108690473

Model

EVAPS EBE Series

Model on label

EBE36-230V 10"M

Product Description

Evaporator Unit

Dimensions product depth, ["]

17 12/16

Dimensions product height, ["]

22 4/16

Dimensions product width, ["]

20 12/16

Net weight, [lbs]

41.75

Input voltage (AC), [V]

230

Input frequency, [Hz]

50/60

Required AC circuit protection min, [A]

10

Required AC circuit protection max, [A]

10

Cooling Capacity, [BTU]

36000

Current consumption min cooling, [A]

3.7

Current consumption max cooling, [A]

3.7

EAN-13

7315091240345

Dimensions parcel depth, ["]

36

Dimensions parcel height, ["]

26

Dimensions parcel width, ["]

25.7

Parcel weight, [lbs]

56.65

Dometic Fan Coils and Controls - Declaration of Conformity EMEA24

Declarations of Conformity

Download

Dometic TurboVap Evaporator - Installation Guidelines Eng(AMER)

Installation Manual

Download

Dometic Emerald Split System - Installation and Operating Manual AMER/EMEA(en)

Installation and Operating Manual

Download

The Dometic EBE is designed for installation low in a closet, cabinet, or other enclosed space, with discharge air ducted to one or more grilles high in the cabin. EBE units can be used with a combination of plenums and flexible duct, or built-in ductwork may be used.
