Dometic AU

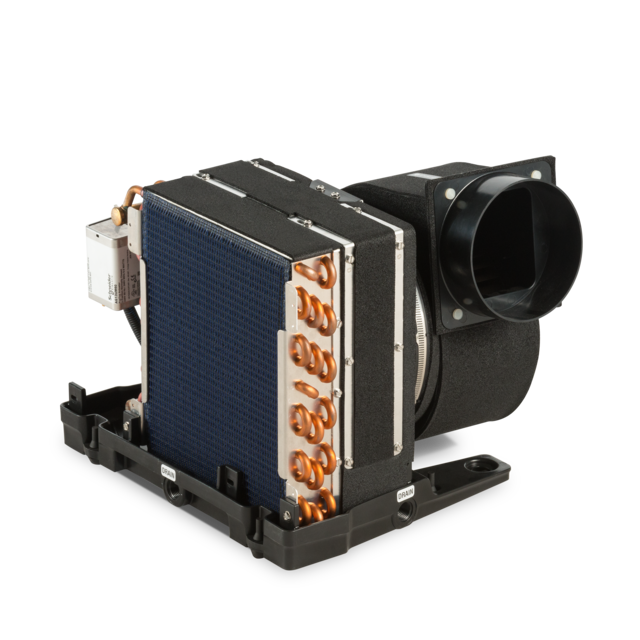

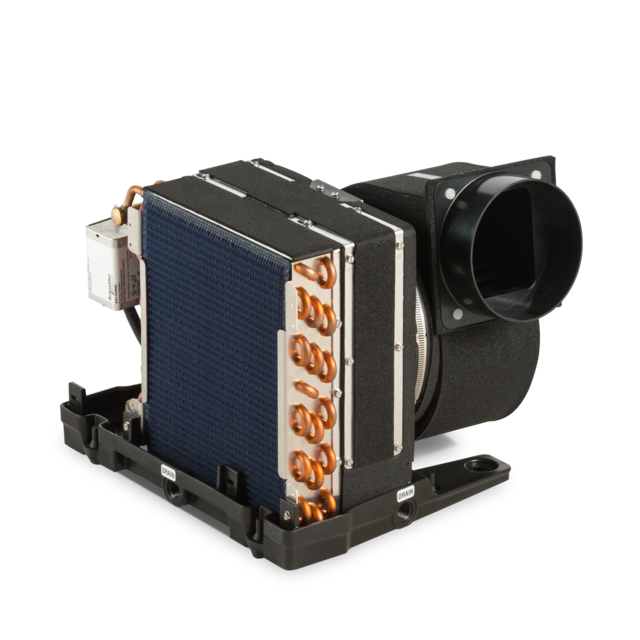

Gold Series Air Handler Units

Redesigned for easier installation and improved performance. Featuring a rust-free composite drain pan, high-velocity blowers and flexible mounting options, this air handler incorporates innovative features for quiet, powerful performance.

Your Configurations
Cooling Capacity, [BTU]

24000

Input voltage (AC), [V]

115

Input frequency, [Hz]

50/60

Item Description

AU24HV 8MR 115V

Product Highlights

Optional EU package upgrades
1 of 3

Optional EU package upgrades

Upgrades include improved insulation and wire loom, protective cover for water-tube hairpins, and more.

Optional DC "WhisperCool" blowers
2 of 3

Optional DC "WhisperCool" blowers

Extremely quiet yet powerful.

Optional integrated Breathe Easy™ air purifier
3 of 3

Optional integrated Breathe Easy™ air purifier

Stops odors and is up to 99.9 % effective in neutralizing contaminants in the air.

Rust-free composite drain pan

Vibration-isolation mounts reduce noise and vibration

Powerful blower can be rotated to straight-down position for overhead applications

Drain pan features anti-slosh, "positive flow" drain channels for no spills and rapid removal on condensates

Single adjustment screw for 270 degrees of rotation

Easy access to water heater overload reset button

SKU number

9108786257

Model

Chillers Air Handlers AU

Model on label

AU24HV 8"MR 115

Product Description

Chilled Water Air Handler

Net weight, [lbs]

40.50

Input voltage (AC), [V]

115

Input frequency, [Hz]

50/60

Required AC circuit protection min, [A]

5

Required AC circuit protection max, [A]

5

Cooling capacity (ISO 5151), [W]

7033.71

Current consumption min cooling, [A]

3.4

Current consumption max cooling, [A]

3.4

EAN-13

7315091246347

Dimensions parcel depth, ["]

32.5

Dimensions parcel height, ["]

22.2

Dimensions parcel width, ["]

22.5

Parcel weight, [lbs]

53.15
