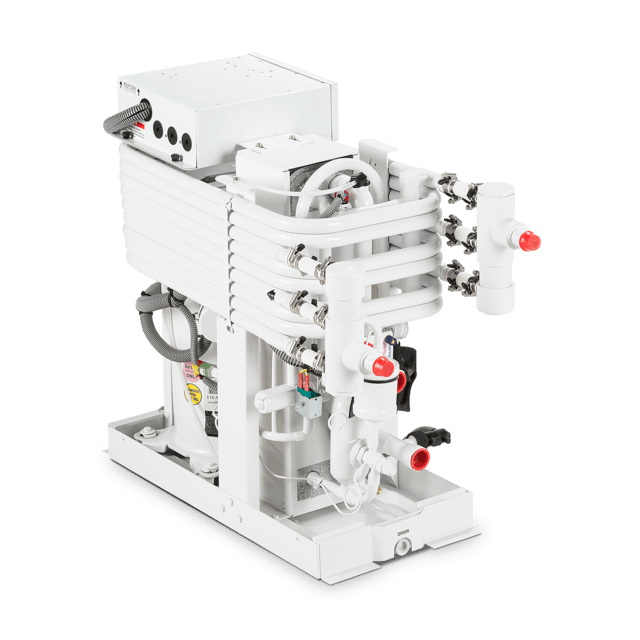

Dometic MCGX
72000
380
50
MCGX72 3853
Modular titanium chiller available from 24,000 to 180,000 BTU/h
Available in 230V 50 Hz, 230V 60Hz, 400V 50Hz 3PH, 400V 60 Hz 3 PH
Titanium condenser dramatically increases product lifespan
Up to six modules can be staged
Hermetically sealed and pre-charged with R410A refrigerant
Features freeze controls, high-limit switches, high and low aquastats and timers
Unaffected by vibration, moisture or ambient temperatures up to 140 °F/60 °C
Monitored and protected by Dometic’s exclusive Digital Diagnostic Controller (DDC)
SKU number
9108916323
Model
Chiller Cond MCG Modular
Model on label
MCGX72 3853
Product Description
Chilled Water Module Titanium from 24,000 to 180,000 BTU/h
Dimensions product depth, ["]
30.04
Dimensions product height, ["]
26.08
Dimensions product width, ["]
13 1/4
Net weight, [lbs]
190
Input voltage (AC), [V]
380
Input frequency, [Hz]
50
Starting current - max, [A]
100
Required AC circuit protection min, [A]
24
Required AC circuit protection max, [A]
40
Refrigerant, type
R410A
Cooling capacity (ISO 5151), [W]
21101.12
Current consumption min cooling, [A]
9.5
Current consumption max cooling, [A]
9.5
Current consumption min heating, [A]
11.8
Current consumption max heating, [A]
11.8
EAN-13
0713814305062
Dimensions parcel depth, ["]
37
Dimensions parcel height, ["]
35
Dimensions parcel width, ["]
31
Parcel weight, [lbs]
277.35
Dometic Chilled Water System - Installation and Operating Manual - AMER(en)
Installation and Operating Manual
